Home / Products / Liquid Ring Vacuum Pumps
Vacuum
Liquid Ring Vacuum Pumps
Single & two-stage liquid ring pumps for wet, vapour-laden and demanding vacuum duty.
10
Series
74
Models

TRMB/TRMX
9 models
TRVB/TRVA
5 models
TRVX
12 models

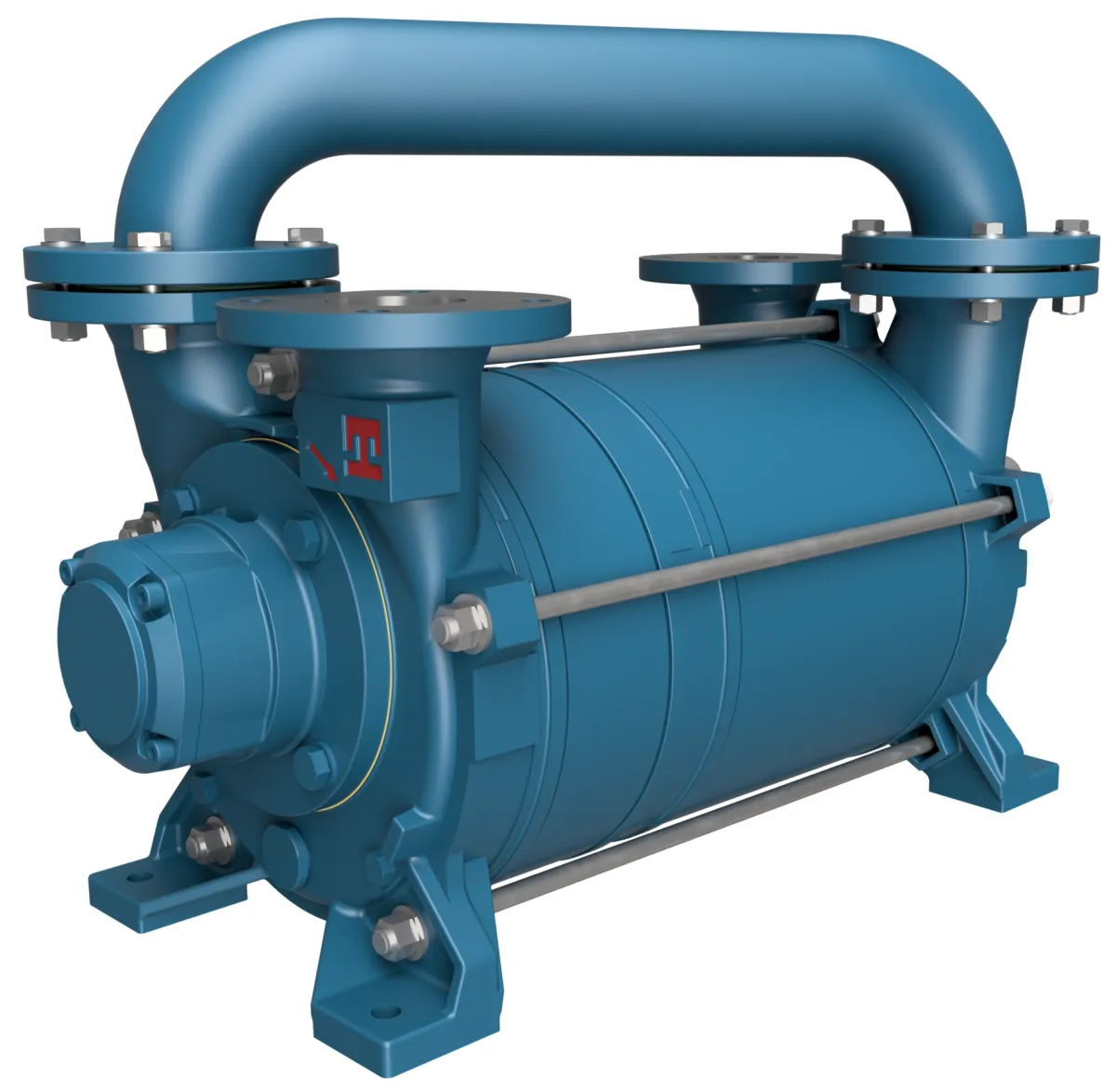

TRHB/C
5 models
TRSE
12 models
TRHE
10 models
TRHA
3 models
TRSK
5 models
TRVK / TRSA
7 models

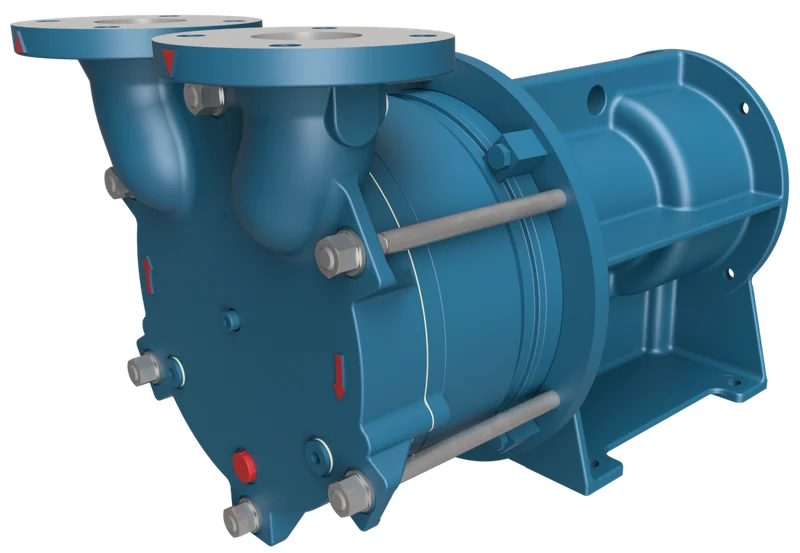

TRVN - CHEMICAL
6 models

TRMB/TRMX
9 models
Monoblock single-stage liquid ring vacuum pumps for low, medium and high vacuum.
Travaini is one of the leading global manufacturers of liquid ring vacuum pumps. Travaini TRM liquid ring vacuum pumps are single stage pumps mounted directly on motor shaft. These pumps are suitable for medium to high vacuum. Liquid ring vacuum pumps are capable of handling non-condensable gas with high volumes of vapours, condensables and liquids. Pump service liquid can be water or other liquids such as oils or solvents to satisfy almost any process requirement. When TRM liquid ring pumps are mated with devices such as atmospheric air ejectors and or vacuum boosters, operating pressures lower than 1 torr are possible.
Select any model below for its full specification sheet, performance curve, sectional and arrangement drawings — links open the original PFS documents.
Capacity
21–150 CFM
Vacuum
28.9 "HgV
Motor
1.5–10 HP
Request a quote
Model
Capacity — CFM / m³h
Vacuum — "HgV / Torr
Motor — HP / RPM
Documents
TRMB 25-30
Capacity21 / 36 CFM / m³h
Vacuum28.9 / 25 "HgV / Torr
Motor1.5 / 3500 HP / RPM
TRMB 32-75
Capacity57 / 97 CFM / m³h
Vacuum28.9 / 25 "HgV / Torr
Motor5 / 3500 HP / RPM
TRMX 257
Capacity38 / 65 CFM / m³h
Vacuum28.9 / 25 "HgV / Torr
Motor3 / 3500 HP / RPM
TRMX 403
Capacity75 / 127 CFM / m³h
Vacuum28.9 / 25 "HgV / Torr
Motor5 / 1750 HP / RPM
TRMX 405
Capacity110 / 187 CFM / m³h
Vacuum28.9 / 25 "HgV / Torr
Motor7.5 / 1750 HP / RPM
TRMX 407
Capacity150 / 255 CFM / m³h
Vacuum28.9 / 25 "HgV / Torr
Motor10 / 1750 HP / RPM
TRMB 40-110
Capacity75 / 127 CFM / m³h
Vacuum28.9 / 25 "HgV / Torr
Motor5 / 1750 HP / RPM
TRMB 40-150
Capacity110 / 187 CFM / m³h
Vacuum28.9 / 25 "HgV / Torr
Motor7.5 / 1750 HP / RPM
TRMB 40-200
Capacity150 / 255 CFM / m³h
Vacuum28.9 / 25 "HgV / Torr
Motor10 / 1750 HP / RPM
Source Liquid Ring Vacuum Pumps through your local distributor
Key representatives and distributors across Canada — ready to help you specify, quote and service the right unit.
Find a Distributor →
