Multistage Centrifugal Pumps
High-pressure multistage and self-priming centrifugal pumps for boiler-feed and transfer.
6
Series
62
Models
TMA - HIGH PRESSURE
28 models

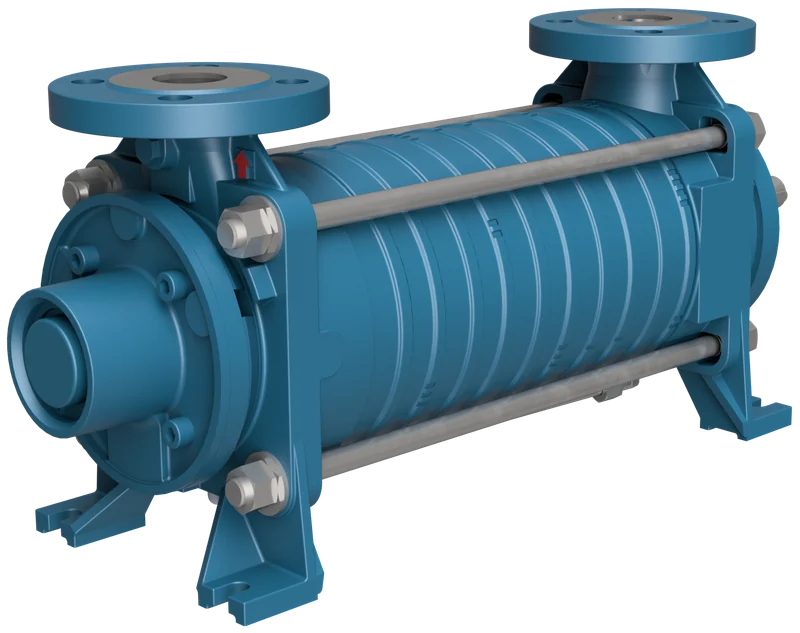

TBH - SELF PRIMING
8 models
TBA - LOW NPSH SELF PRIMING
6 models

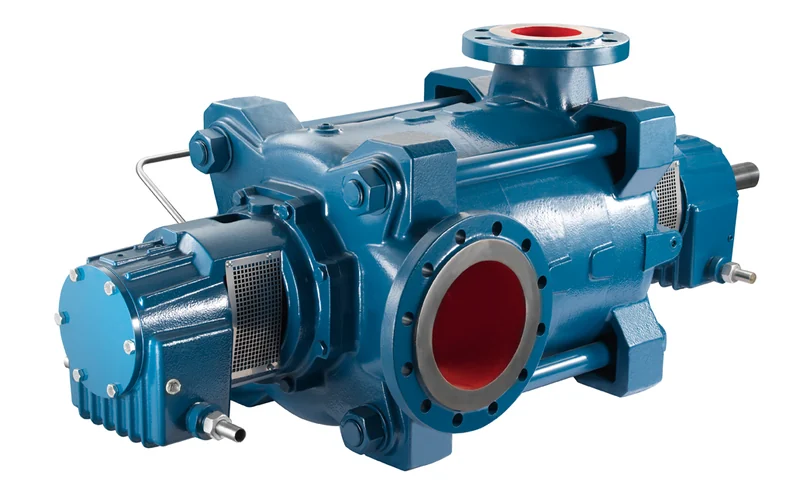

TMHP - HIGH PRESSURE HIGH FLOW
7 models

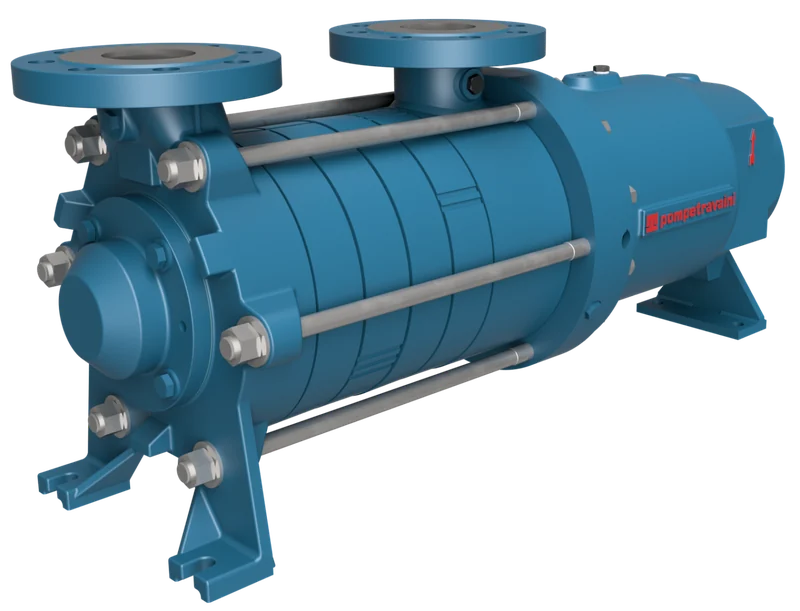

TBHK - MAGNETIC DRIVE SELF PRIMING
7 models

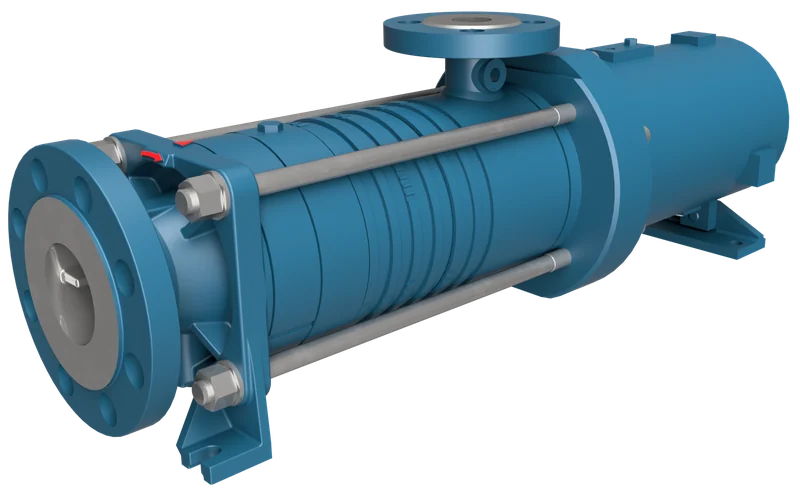

TBAK - MAGNETIC DRIVE LOW NPSH SELF PRIMING
6 models
TMA - HIGH PRESSURE
28 models
Multistage centrifugal pumps with closed impellers.
Travaini TMA pump series are multi-stage centrifugal pumps with closed type impellers. Axial thrust is balanced by special blades on the back of the impeller. One sleeve bearing and heavy duty out board angular bearing absorb remaining thrust.
Select any model below for its full specification sheet, performance curve, sectional and arrangement drawings — links open the original PFS documents.
Flow
10–240 USGPM
Head
183–1300 ft
Motor
5–100 HP
NPSH
4.5–22 ft
⤓ Download manual (PDF)Request a quote
Model
Flow — USGPM
Head — ft
Motor — HP / RPM
NPSH — ft
Documents
TMA 31-3
Flow10 – 40 USGPM
Head183 – 360 ft
Motor5 to 7.5 / 3500 HP / RPM
NPSH5 – 6.3 ft
TMA 31-4
Flow10 – 40 USGPM
Head244 – 480 ft
Motor7.5 to 10 / 3500 HP / RPM
NPSH5 – 6.3 ft
TMA 31-5
Flow10 – 40 USGPM
Head305 – 600 ft
Motor10 to 15 / 3500 HP / RPM
NPSH5 – 6.3 ft
TMA 31-6
Flow10 – 40 USGPM
Head366 – 720 ft
Motor10 to 15 / 3500 HP / RPM
NPSH5 – 6.3 ft
TMA 31-7
Flow10 – 40 USGPM
Head427 – 840 ft
Motor15 to 20 / 3500 HP / RPM
NPSH5 – 6.3 ft
TMA 31-8
Flow10 – 40 USGPM
Head488 – 964 ft
Motor15 to 20 / 3500 HP / RPM
NPSH5 – 6.3 ft
TMA 31-9
Flow10 – 40 USGPM
Head549 – 1080 ft
Motor15 to 20 / 3500 HP / RPM
NPSH5 – 6.3 ft
TMA 32-3
Flow30 – 80 USGPM
Head228 – 378 ft
Motor7.5 to 10 / 3500 HP / RPM
NPSH5.6 – 12 ft
TMA 32-4
Flow30 – 80 USGPM
Head304 – 504 ft
Motor10 to 15 / 3500 HP / RPM
NPSH5.6 – 12 ft
TMA 32-5
Flow30 – 80 USGPM
Head380 – 630 ft
Motor15 to 20 / 3500 HP / RPM
NPSH5.6 – 12 ft
TMA 32-6
Flow30 – 80 USGPM
Head456 – 756 ft
Motor15 to 20 / 3500 HP / RPM
NPSH5.6 – 12 ft
TMA 32-7
Flow30 – 80 USGPM
Head532 – 882 ft
Motor15 to 25 / 3500 HP / RPM
NPSH5.6 – 12 ft
TMA 32-8
Flow30 – 80 USGPM
Head608 – 1008 ft
Motor20 to 30 / 3500 HP / RPM
NPSH5.6 – 12 ft
TMA 32-9
Flow30 – 80 USGPM
Head684 – 1134 ft
Motor20 to 30 / 3500 HP / RPM
NPSH5.6 – 12 ft
TMA 40-3
Flow50 – 140 USGPM
Head237 – 363 ft
Motor15 to 20 / 3500 HP / RPM
NPSH5 – 22 ft
TMA 40-4
Flow50 – 140 USGPM
Head316 – 484 ft
Motor15 to 25 / 3500 HP / RPM
NPSH5 – 22 ft
TMA 40-5
Flow50 – 140 USGPM
Head395 – 605 ft
Motor20 to 30 / 3500 HP / RPM
NPSH5 – 22 ft
TMA 40-6
Flow50 – 140 USGPM
Head474 – 726 ft
Motor25 to 40 / 3500 HP / RPM
NPSH5 – 22 ft
TMA 40-7
Flow50 – 140 USGPM
Head553 – 847 ft
Motor30 to 40 / 3500 HP / RPM
NPSH5 – 22 ft
TMA 40-8
Flow50 – 140 USGPM
Head632 – 968 ft
Motor30 to 50 / 3500 HP / RPM
NPSH5 – 22 ft
TMA 40-9
Flow50 – 140 USGPM
Head711 – 1089 ft
Motor40 to 60 / 3500 HP / RPM
NPSH5 – 22 ft
TMA 50-3
Flow60 – 240 USGPM
Head288 – 486 ft
Motor20 to 40 / 3500 HP / RPM
NPSH4.5 – 15.5 ft
TMA 50-4
Flow60 – 240 USGPM
Head384 – 648 ft
Motor30 to 50 / 3500 HP / RPM
NPSH4.5 – 15.5 ft
TMA 50-5
Flow60 – 240 USGPM
Head480 – 810 ft
Motor40 to 60 / 3500 HP / RPM
NPSH4.5 – 15.5 ft
TMA 50-6
Flow60 – 240 USGPM
Head576 – 972 ft
Motor40 to 75 / 3500 HP / RPM
NPSH4.5 – 15.5 ft
TMA 50-7
Flow60 – 240 USGPM
Head672 – 1134 ft
Motor50 to 75 / 3500 HP / RPM
NPSH4.5 – 15.5 ft
TMA 50-8
Flow60 – 240 USGPM
Head764 – 1296 ft
Motor60 to 100 / 3500 HP / RPM
NPSH4.5 – 15.5 ft
TMA 50-9
Flow60 – 240 USGPM
Head800 – 1300 ft
Motor60 to 100 / 3500 HP / RPM
NPSH4.5 – 15.5 ft
